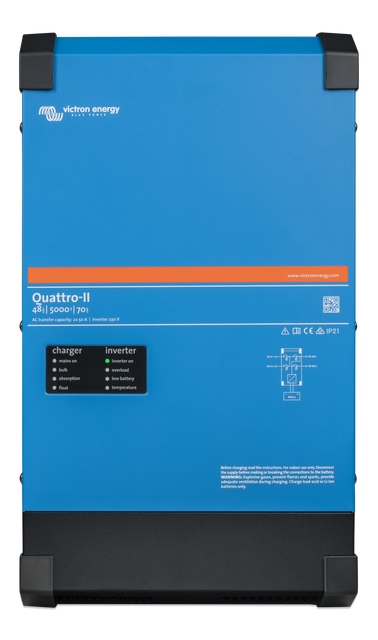

Victron Quattro-II Inverter Charger 48/5000/70-50/50
SKU: QUA482504010 Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories
Product Description
Victron Quattro-II Inverter Charger 48/5000/70-50/50, 5 Year Warranty.Â
Multifunctional
Similar to the MultiPlus-II, the Quattro-II is also a combined inverter and charger. Additionally it can accept two AC inputs and automatically connect to the active source. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology plus multiple system integration features such as three or split phase operation and parallel operation.
Two AC Inputs & two AC Outputs
The Quattro-II can be connected to two independent AC sources, for example shore-side power and a generator, or two generators. The Quattro-II will automatically connect to the active source. The main output has no-break functionality. In the event of a grid failure, or shore or generator power being disconnected, the Quattro-II takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on one of the inputs of the Quattro-II. Loads that should not discharge the battery, such as air-conditioning or a water heater can be connected to this output.
Unique PowerAssist feature
The Quattro-II will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.
Virtually unlimited power thanks to parallel operation
Up to 6 Quattros-II can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible.
Â
Specifications
SKU QUA482504010
Brand Victron
GTIN 8719076054092
Warranty Period: 5 Years
Product Category Power Inverter Chargers
Output Current Rating (Amps) 70
Model Quattro 48/5000/70
Product Type Inverter and charger in one package
Wattage (W) 5000
Charge Voltage Float - Wet (25 degrees)** 55.2V
Net Weight (kg) 30
No load power consumption 18W | 2W in search mode
Inverter Output Nominal Efficiency 96%
Inverter Output Continuous Watts 4000W (continuous output power at 25°C)
AC Input 187-265VAC | 45-65Hz | 1
Charge voltage 'storage' 52.8V
Charge voltage 'absorption' 57.6V
Product Dimensions (mm) LxWxH 560mm x 328mm x 148mm
Output Voltage and Frequency 230 Vac ± 2% / 50 Hz ± 0.1%
Peak power 9000W
Output Power 4000W (continuous output power at 25°C) | 3700W (continuous output power at 40°C) | 3000W (continuous output power at 65°C)
Input Voltage 38-66V
Operating temperature range -40 to +65°C
NOTE For further specifications and performance details, please download the PRODUCT CARD under our Product Details tab
