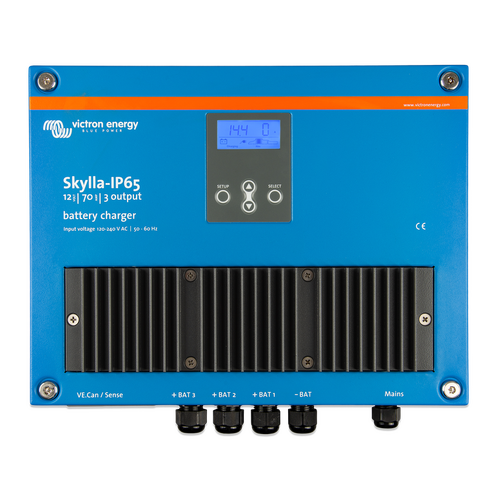

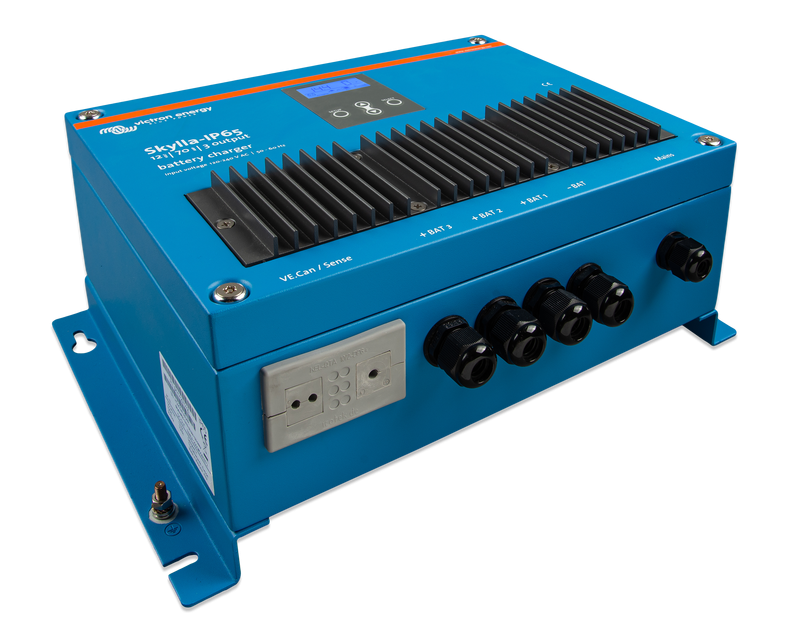

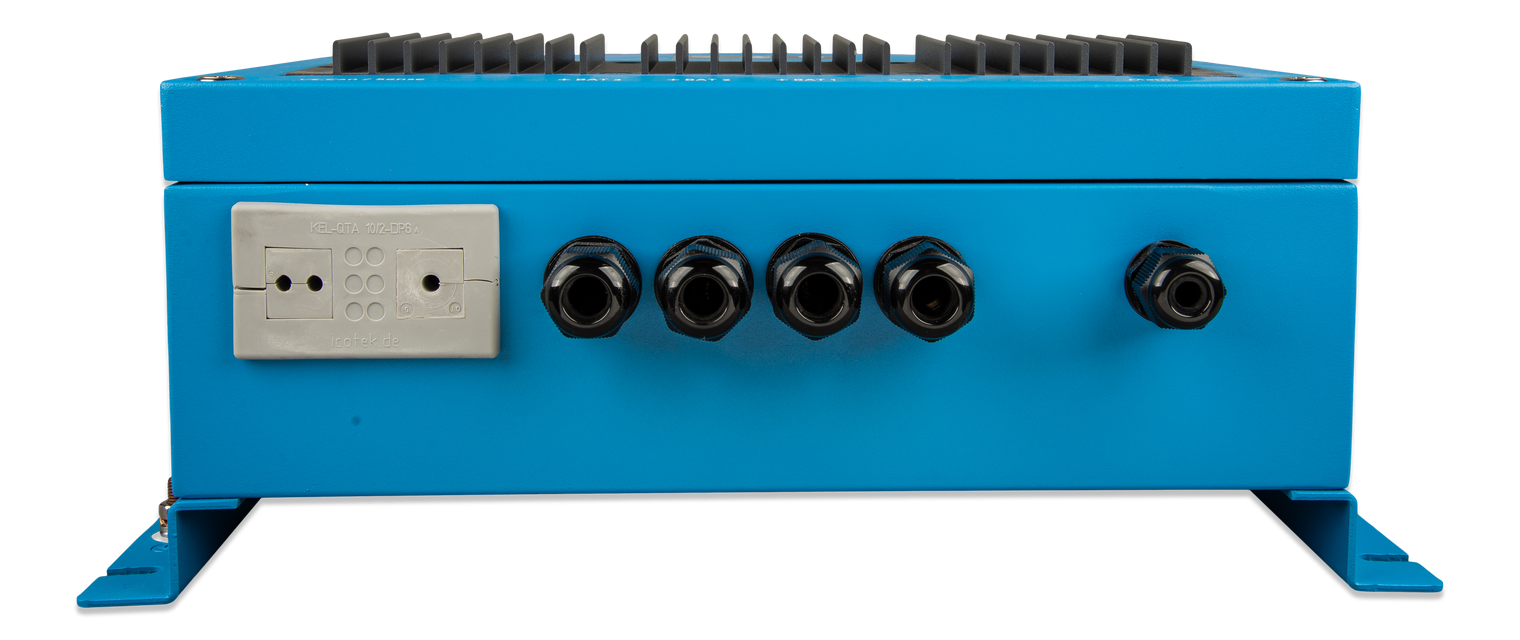

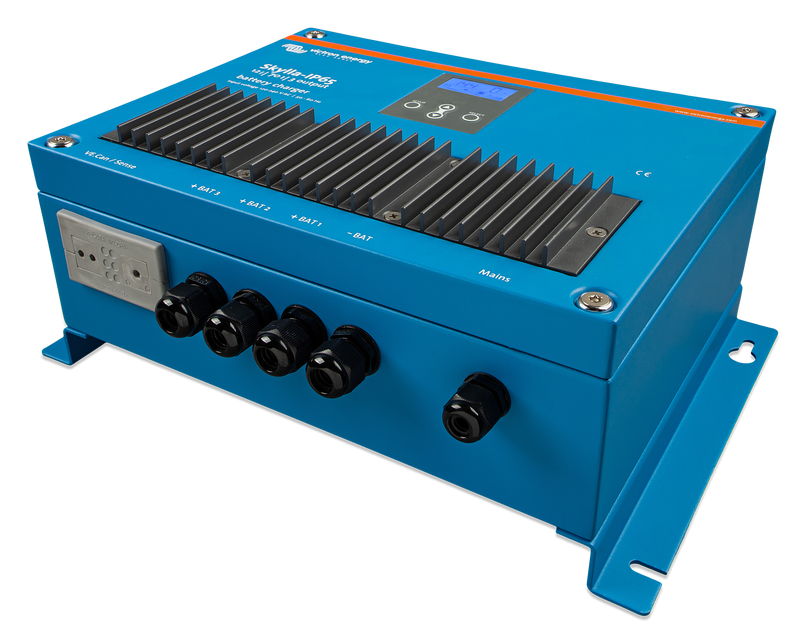

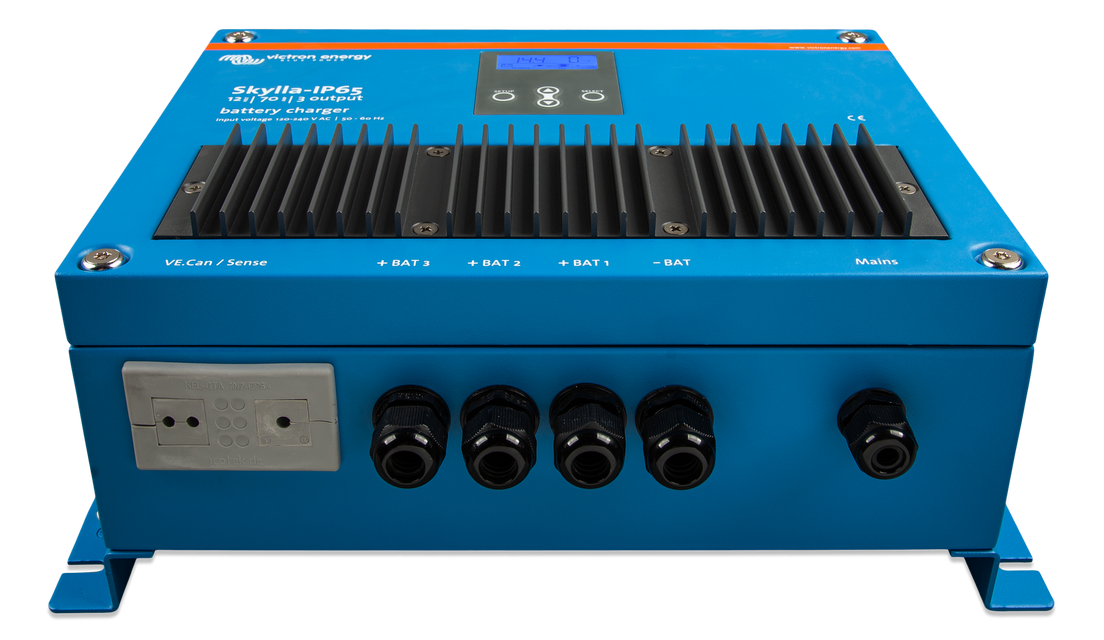

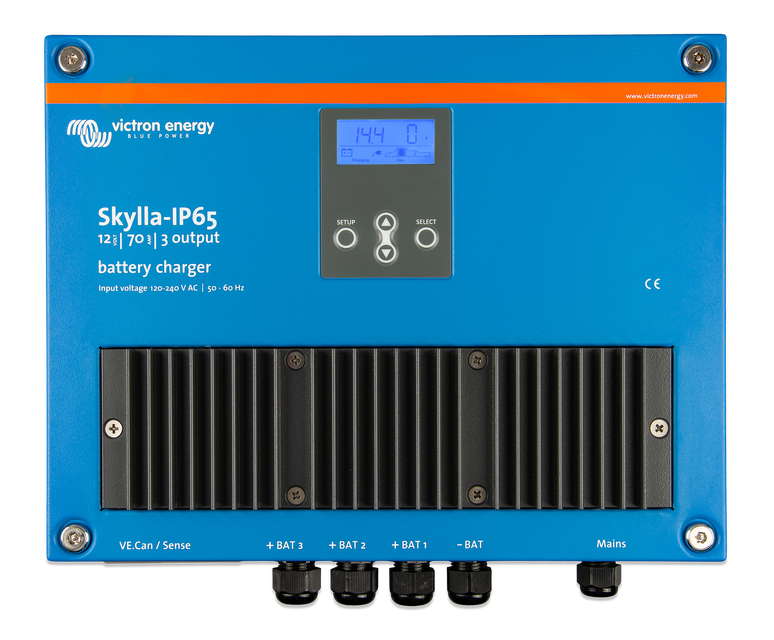

Victron Skylla-IP65 12/70 Battery Charger (3) 120-240V
SKU: SKY012070100 Learn More»
Product Description
Victron Skylla-IP65 12/70 Battery Charger (3) 120-240V, 5 Year Warranty. A powerful, waterproof and intelligent battery charger with a 7-stage adaptive charge algorithm, suitable for a wide range of battery types and chemistries featuring a dedicated Lithium-ion charge algorithm.
The wide range universal input voltage adds flexibility to the installation, the charger will maintain its full output power no matter where it is located in the world.
The IP65 rating makes this charger especially suitable for marine, mobile, and industrial applications and it can withstand the rigors of an adverse environment: heat, humidity and salt air.
Both models are available in two versions:
- 3 full rated outputs
- 1 full rated output together with an isolated 3A trickle charge output for a starter battery
Specifications
SKU SKY012070100
Brand Victron
GTIN 8719076051978
Warranty Period: 5 Years
Product Category Battery Chargers
Output Current Rating (Amps) 70
Charge Algorithm 7-stage adaptive
Charger Voltage 12V
Net Weight (kg) 6
Input voltage range  90-265 V
Power Factor Correction 0.98
AC Input Frequency Range 45-65 Hz
AC Connection screw-clamp 6mm² (AWG 10)
Dimensions 401 x 265 x 151 mm
Charge voltage 'storage' 13.2V
Charge voltage 'absorption' 14.4 V
Protection category IP65
Charge current 3 x 70A
AC Input Voltage 120/230 V
Battery Capacity 350-700 Ah
Operating temperature range -20 to 60 °C (Full output current up to 40 °C)
Humidity Max 95Â % (Non-Condensing)
