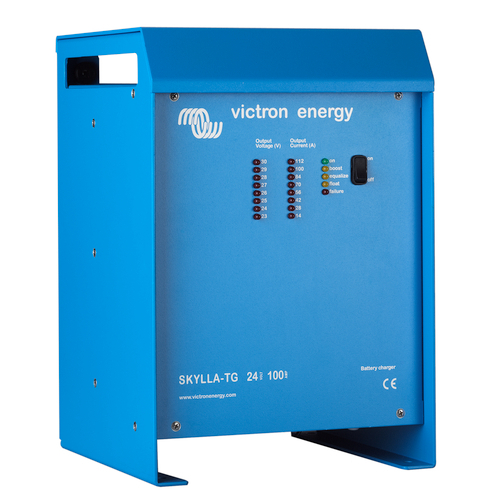

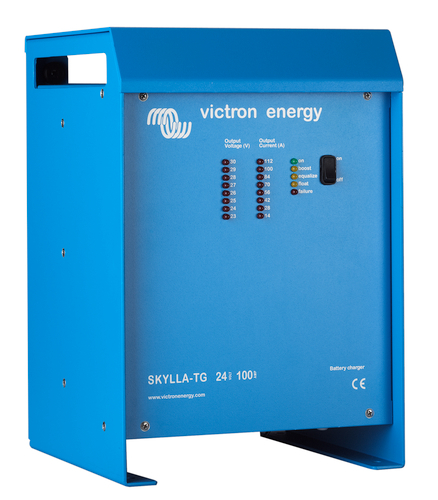

Victron Skylla-TG 24/100 (1+1) 120-240V Charger
SKU: SDTG2401003 Learn More»
Product Description
Victron Skylla-TG 24/100 (1+1) 120-240V Charger, 5 Year Warranty. One full rated output and one 4 Amp output. Charge voltage can be precisely adjusted to suit any battery system. The input for the charger is 230V at 50/60HZ. Charge voltage can be measured directly on the battery terminals in order to compensate for voltage loss due to cable resistance. An external sensor allows measuring battery temperature and compensating charge voltage accordingly.
The chargers will also accept a 90-400 V DC supply.
The Chargers have been approved by Germanischer Lloyd (GL) to environmental category C, EMC 1.
Category C applies to equipment protected from the weather.
EMC 1 applies to conduct and radiated emission limits for equipment installed on the bridge of a ship.
The approval to GL C, EMC1 implies that the Chargers also comply with IEC 60945-2002, category ‘protected’ and ‘equipment installed on the bridge of a ship’.
The GL certification applies to 185-265 V AC supply.
Other features:
- Microprocessor control
- Can be used as power supply
- Battery temperature sensor for temperature compensated charging
- Battery voltage sensing to compensate for voltage loss due to cable resistance
Other Skylla Chargers:
- Standard 185-265 V AC models with additional output to charge a starter battery
- GMDSS models, with all required monitoring and alarm functions.
Specifications
SKU SDTG2401003
Brand Victron
GTIN 8719076025795
Warranty Period: 5 Years
Product Category Battery Chargers
Output Current Rating (Amps) 100
Model SDTG2401003
Protection category IP 21
Charger Voltage 24V
Net Weight (kg) 10
Can be used as power supply Yes
Charge voltage 'absorption' 28.5V
Charge Voltage Float - Wet (25 degrees)** 26.5V
Dimensions 365 x 250 x 257 mm (L x W x H)
Charge current 100 A
Output System Voltage 24V
Battery Capacity 500-1000 Ah
Input Voltage 90-265 V AC | 90-400 V DC
Operating temperature range -40 to +50°C (-40 - 122°F) Full output current up to 40°C
Battery-connection M8 bolts
Humidity Max 95%
