Victron Skylla-TG 48/50 (1+1) Charger

SKU: SDTG4800501 Learn More»

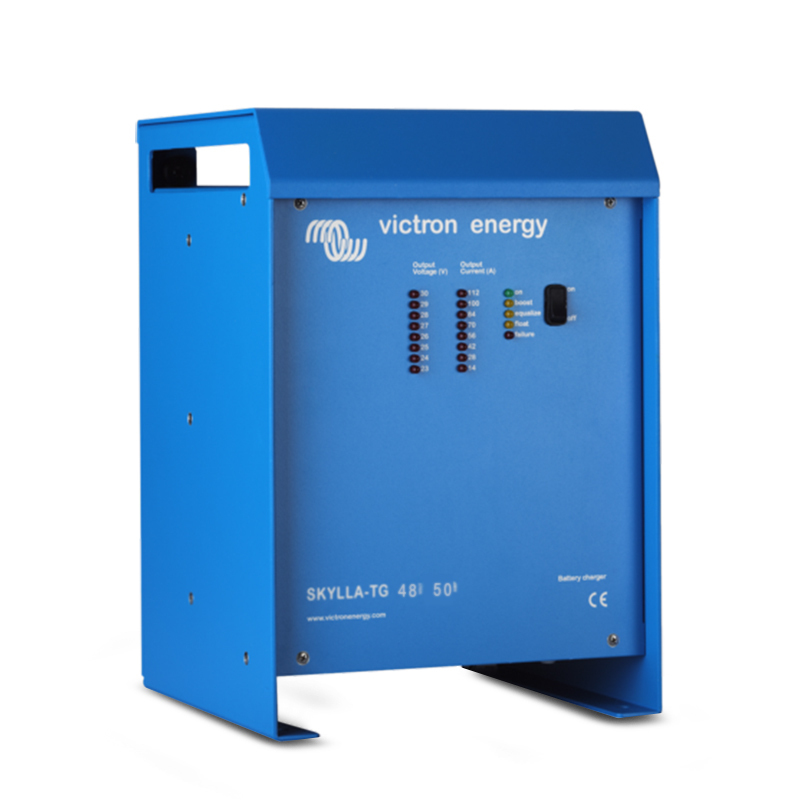

Victron Skylla-TG 48/50 (1+1) Charger
Free Shipping
$2,399
$2,957

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

Dispatch 5-7 Days Express Shipping Price Match Guarantee Customer Reviews

Product Description

Victron Skylla-TG 48/50 (1+1) Charger, 5 Year Warranty. One full rated output and one 4 Amp output. Charge voltage can be precisely adjusted to suit any battery system. The input for the charger is 230V at 50/60HZ. Charge voltage can be measured directly on the battery terminals in order to compensate for voltage loss due to cable resistance. An external sensor allows measuring battery temperature and compensating charge voltage accordingly.

Perfect chargers for any type of battery:
Charge voltage can be precisely adjusted to suit any sealed or unsealed battery system.
In particular, sealed maintenance-free batteries must be charged correctly in order to ensure long service life.

Suitable for AC and DC supply (AC-DC and DC-DC operation):
Except for the 3-phase input models, the chargers also accept a DC supply.

Controlled charging:
Every TG Charger has a microprocessor, which accurately controls the charging in three steps. The charging
process takes place in accordance with the IUoUo characteristic and charges more rapidly than other processes.

Use of TG Chargers as power supply:
As a result of the perfectly stabilized output voltage, a TG Charger can be used as a power supply if batteries or
large buffer capacitors are not available.

Two outputs to charge 2 battery banks (24V models only):
The TG Chargers feature 2 isolated outputs. The second output, limited to approximately 4A and with a slightly
lower output voltage, is intended to top up a starter battery.

To increase battery life: temperature compensation:
Every Skylla TG Charger comes with a battery temperature sensor. When connected, charge voltage will
automatically decrease with increasing battery temperature. This feature is especially recommended for sealed
batteries which otherwise might be overcharged and dry out due to venting.

Battery voltage sense:
In order to compensate for voltage loss due to cable resistance, TG Chargers are provided with a voltage sense
the facility so that the battery always receives the correct charge voltage.

Victron BPU12/25 Product Card

Victron BPU12/25 Manual

Specifications

SKU SDTG4800501

Brand Victron

GTIN 8719076025818

Warranty Period: 5 Years

Product Category Battery Chargers

Output Current Rating (Amps) 50

Model SDTG4800501

Protection category IP 21

Charger Voltage 48V

Net Weight (kg) 10

Can be used as power supply Yes

Charge voltage 'absorption' 57V

Charge Voltage Float - Wet (25 degrees)** 53V

Dimensions 365 x 250 x 257 mm (L x W x H)

Charge current 50 A

Output System Voltage 48V

Battery Capacity 250-500 Ah

Input Voltage 185-264 V AC | 180-400 V DC

Operating temperature range -40 to +50°C (-40 - 122°F)

Battery-connection M8 bolts

Humidity Max 95%
