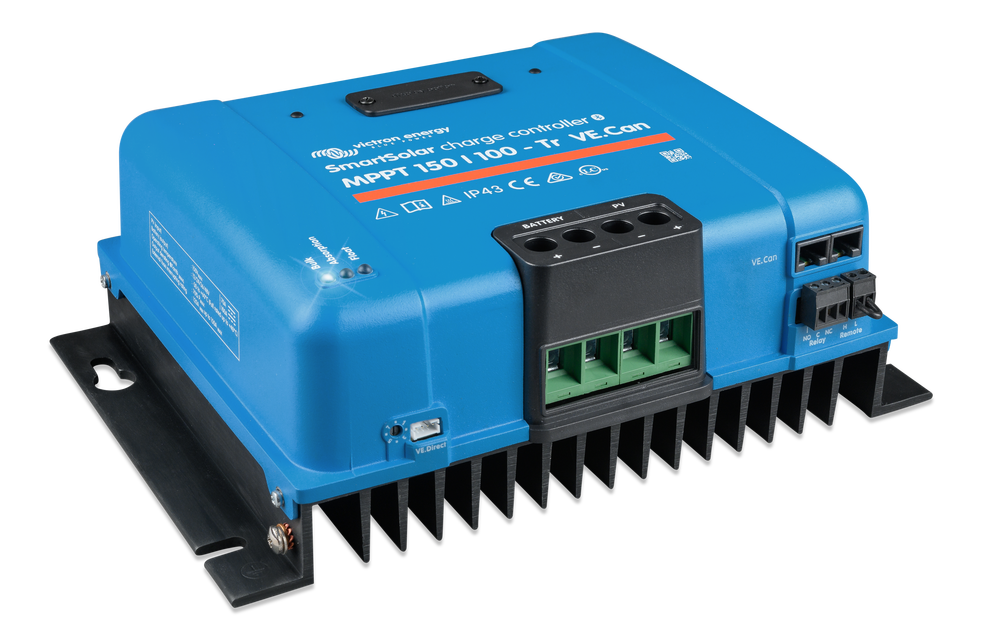

Victron Smart Solar MPPT 150/100-MC4 VE.Can Charge Controller

Product Description

Victron Smart Solar MPPT 150/100-MC4 VE.Can Charge Controller, 5 Year Warranty. The MPPT VE.Can SmartSolar charger uses the latest and fastest technology to convert energy from a solar array into energy that optimally charges a battery banks.

The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.

MPPT: Ultra Fast Maximum Power Point Tracking:

By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.

Remote Monitoring and Control:

Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in bluetooth by pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both services are free to use. For remote installations - even when there is no internet connection or phone signal nearby - you may be able to monitor your MPPT by bluetooth-pairing with a LoRaWAN (long-range wide area network) device, available optionally.

Optional SmartSolar Control Display:

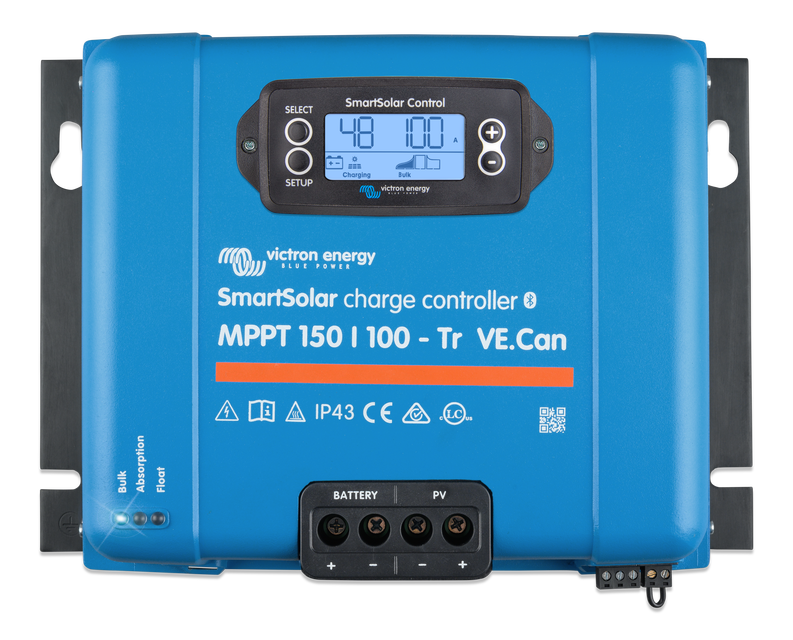

By adding the SmartSolar Control Display you will be able to check the status of your Charger and battery-storage at a glance. Simply plug it into the face of your MPPT charger to provide you with real-time monitoring and set-up capabilities.

Ultra-fast Maximum Power Point Tracking (MPPT):

Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Advanced Maximum Power Point Detection in case of partial shading conditions:

If partial shading occurs, two or more maximum power points may be present on the powervoltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative SmartSolar algorithm will always maximize energy harvest by locking to the optimum MPP.

Outstanding conversion efficiency:

No cooling fan. Maximum efficiency exceeds 98%.

Flexible charge algorithm:

Fully programmable charge algorithm, and eight preprogrammed algorithms, selectable with a rotary switch (see manual for details).

Extensive electronic protection:

Over-temperature protection and power derating when temperature is high.
PV short circuit and PV reverse polarity protection.
PV reverse current protection.

Internal temperature sensor:

Compensates absorption and float charge voltage for temperature.

Bluetooth Smart built-in: dongle not needed:

The wireless solution to set-up, monitor and update the controller using Apple and Android smartphones, tablets or other devices.

VE.Direct:

For a wired data connection to a Color Control GX, other GX products, PC or other devices

Remote on-off:

To connect for example to a VE.BUS BMS.

Programmable relay:

Can be programmed (a.o. with a smartphone) to trip on an alarm, or other events.

Optional: pluggable LCD display:

Simply remove the rubber seal that protects the plug on the front of the controller, and plug-in the display.
