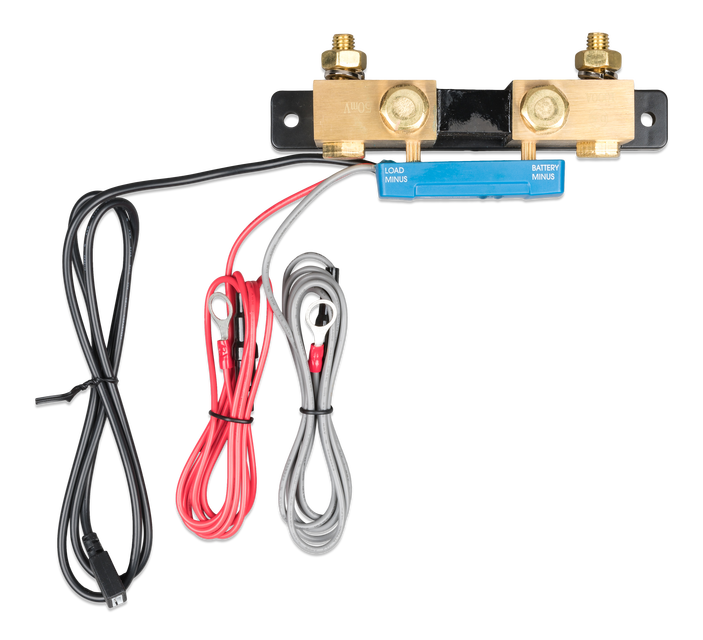

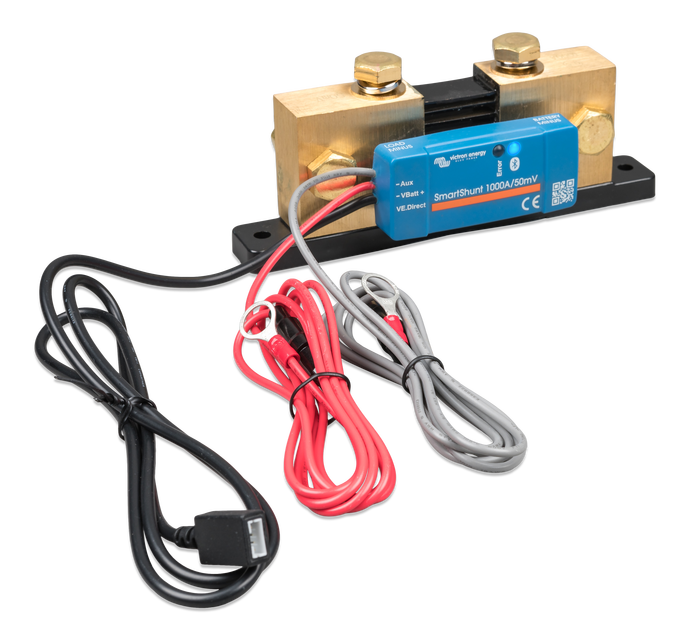

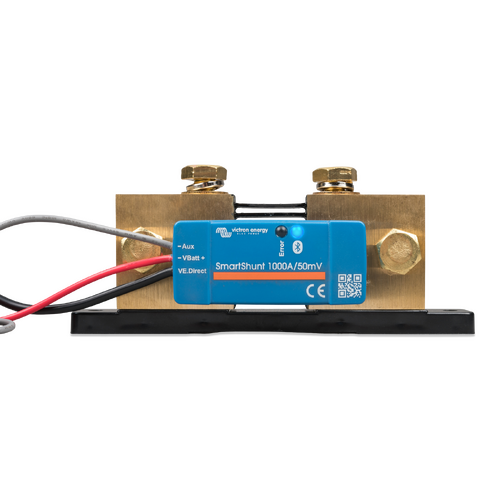

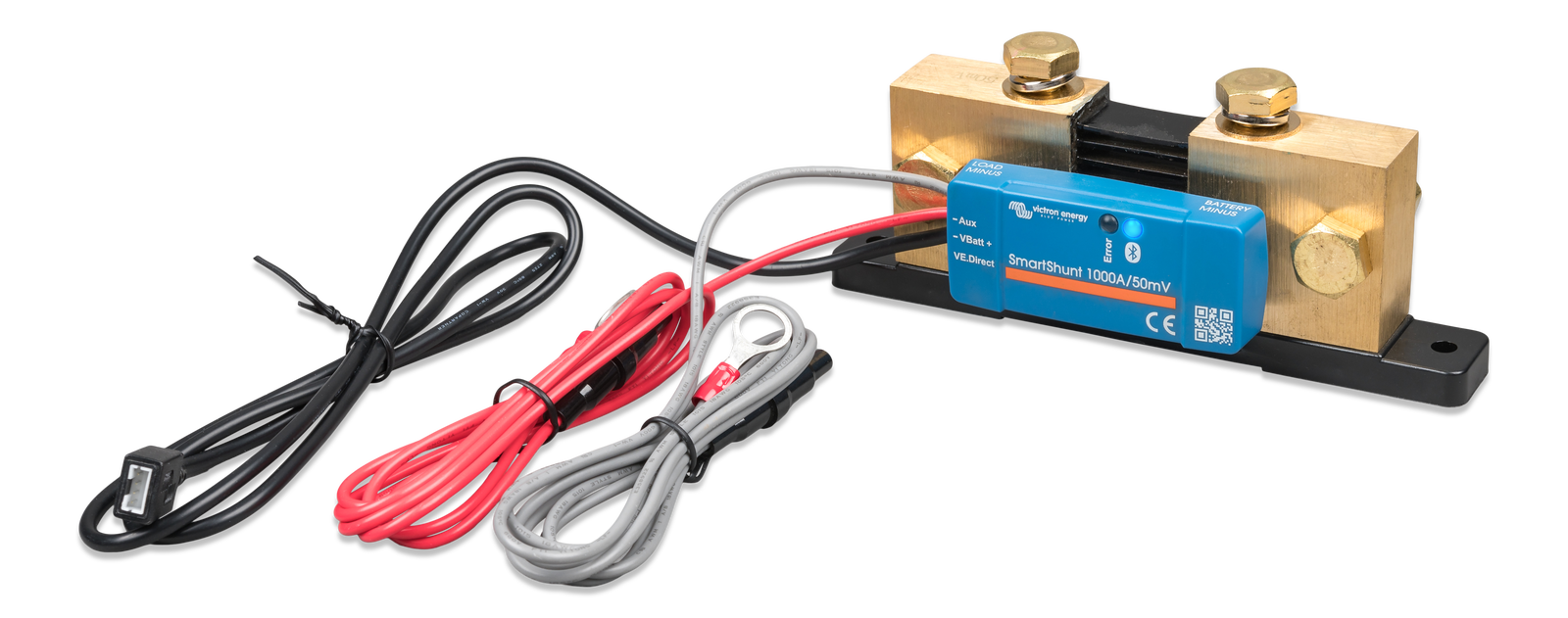

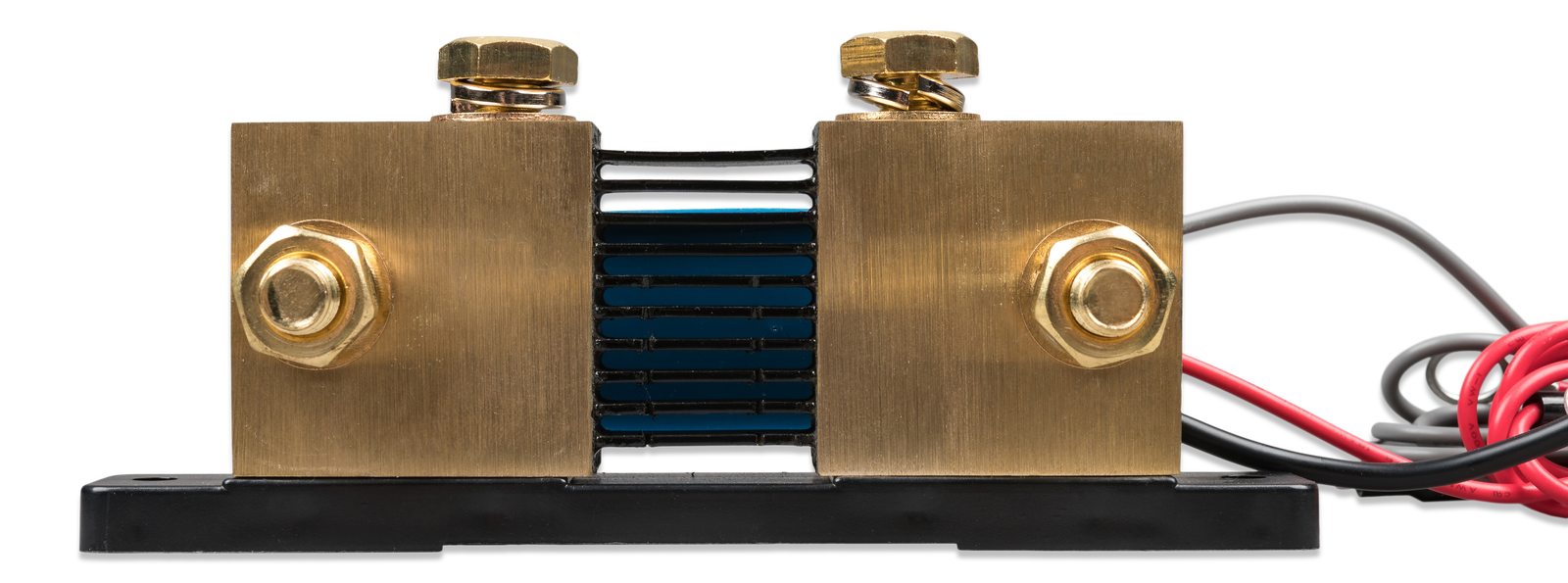

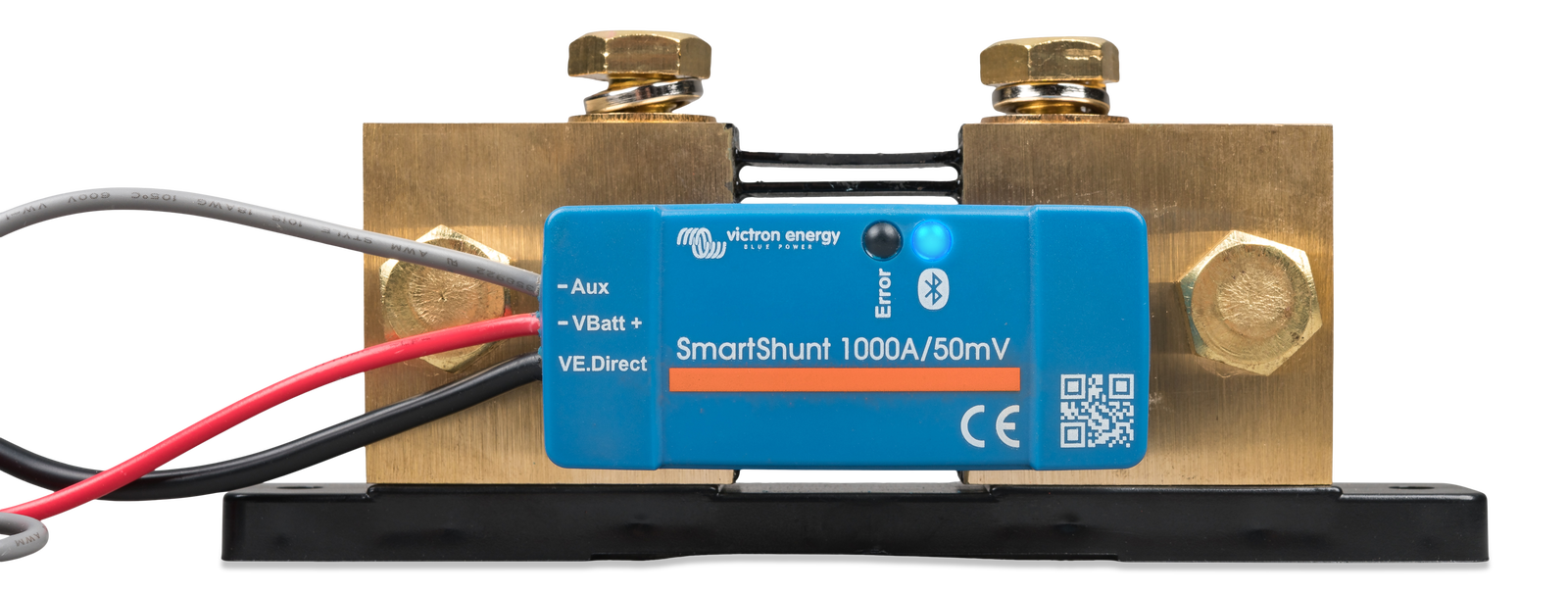

Victron SmartShunt 1000A/50mV IP65
SKU: SHU065210050 Learn More»
Product Description
Victron SmartShunt 1000A/50mV IP65, 5 Years Warranty. The SmartShunt is an all in one battery monitor, only without a display. Your phone acts as the display. The SmartShunt connects via Bluetooth to the VictronConnect app on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more.
Alternatively the SmartShunt can be connected and be read by a GX device. Connection to the SmartShunt is made via a VE.Direct cable.
The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted.
The SmartShunt is equipped with Bluetooth, a VE.Direct port and a connection that can be used for: monitoring a second battery, midpoint monitoring or a temperature sensor.
Specifications
SKU SHU065210050
Brand Victron
GTIN 8719076057901
Warranty Period: 5 Years
Product Category Electrical Accessories
State of charge (0 – 100 %) ± 0.1 %
Time to go ± 1 min
Protection category IP65
Voltage ± 0.01V
Temperature measurement range -20 +50 °C
Supply Voltage Range 6.5 - 70VDC
Operating temperature range -40 +50 °C
Dimensions (H x W x D) 68 x 168 x 75 mm
Current ± 0.01 A
Current draw < 1mA
Videos
Victron Smart Shunt explanation
SmartShunt Battery Monitor Vs Waterproof SmartShunt IP65 Battery Monitor - Victron Energy
SmartShunt IP65 Battery Monitor
Victron SmartShunt - Monitor Batteries via Bluetooth
