Victron SmartSolar Bundle with Orion-Tr Smart 12/12-18A DC-DC Charger, SmartSolar MPPT 100/20 Charge Controller & BMV-712 Smart Battery Monitor

SKU: BDL009 Learn More»

Free Shipping

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

Customer Reviews

Go to: Product Details

Go to: Specifications

Product Description

Victron SmartSolar Bundle with Orion-Tr Smart 12/12-18A DC-DC Charger, SmartSolar MPPT 100/20 Charge Controller & BMV-712 Smart Battery Monitor, 5 Year Warranty.

By harnessing the advanced capabilities of the Victron Orion-Tr Smart 12/12-18A DC-DC Charger, the SmartSolar MPPT 100/20 Charge Controller, the BMV-712 Smart Battery Monitor, along with extra add-ons, this collection becomes your gateway to enhanced off-grid adventures. Unlock the potential of solar panels and batteries, operate your preferred 12V devices, and extend your connectivity for more extensive travels. The Victron SmartSolar Package becomes your pass to off-grid independence on our platform.

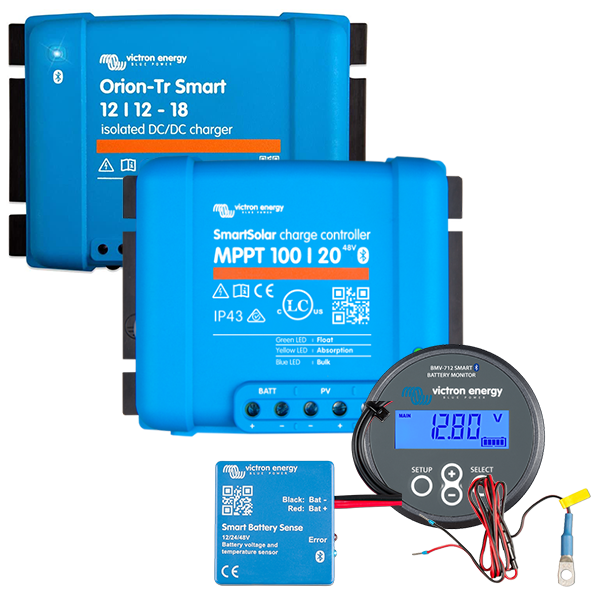

Pack Includes:

Victron Orion-Tr Smart 12/12-18A (220W) DC-DC charger - ORI121222120
Victron SmartSolar MPPT 100/20 - 12/24/48V Charge Controller - SCC110020160R
Victron Battery Monitor BMV-712 Smart - BAM030712000R
Victron Temperature Sensor for BMV-702/712 - ASS000100000
Victron Smart Battery Sense Long Range (up to 10m) - SBS050150200

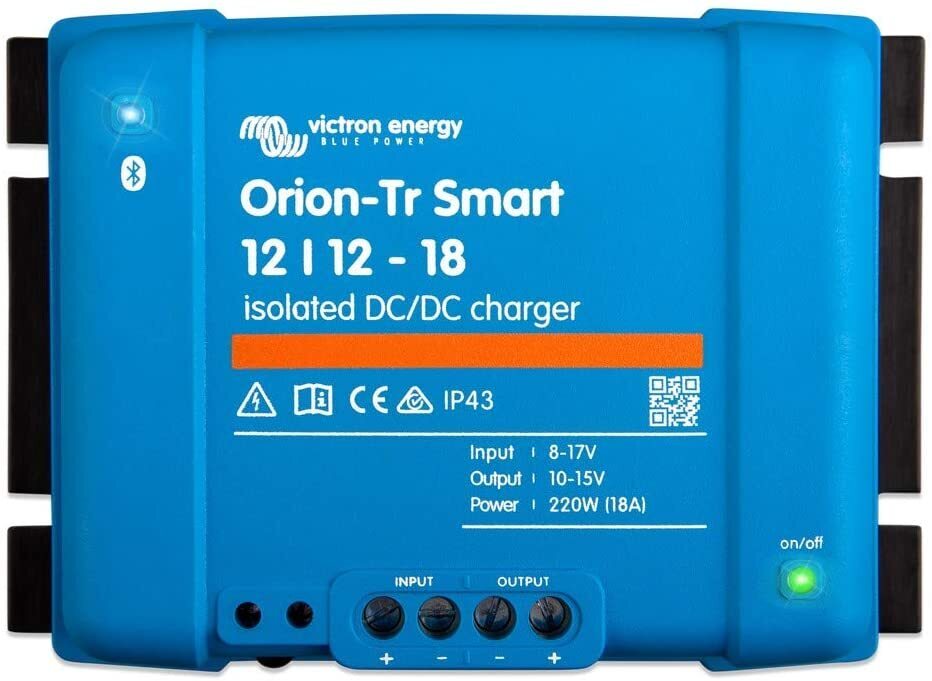

Victron Orion-Tr Smart 12/12-18A (220W) DC-DC Charger - ORI121222120

The Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth. For use in dual battery systems in vehicles or on boats where the alternator and the start battery are used to charge the service battery. This Victron battery charger can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch.

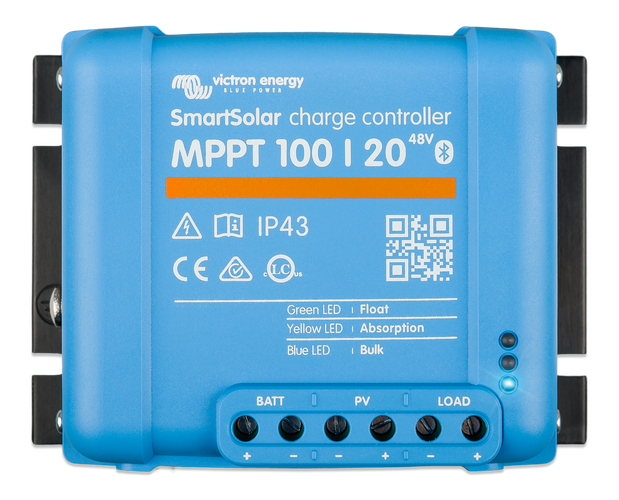

Victron SmartSolar MPPT 100/20 Charge (12/24/48V) Controller: SCC110020160R

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time.

By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage.

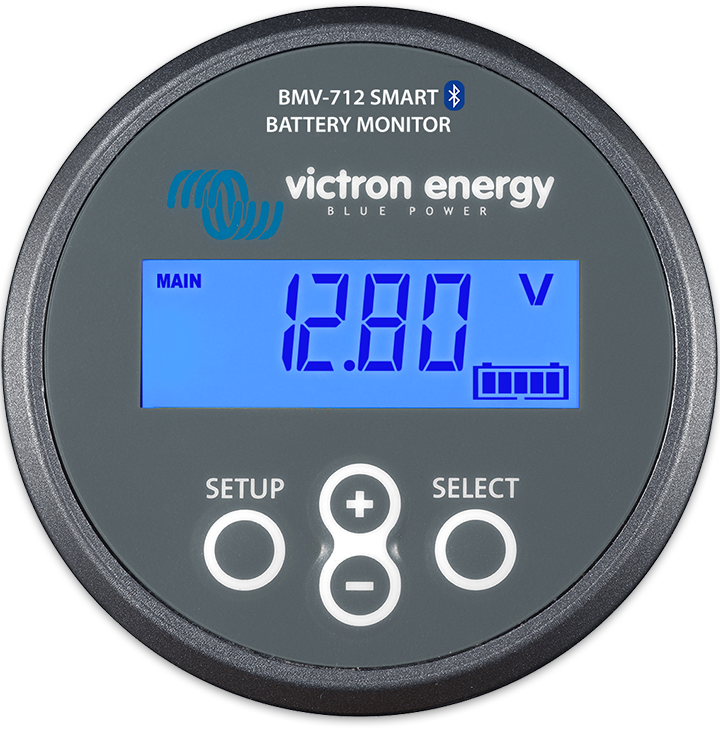

Victron Battery Monitor BMV-712 Smart - BAM030712000R

With Bluetooth built-in, the BMV Smart is ready for the Internet of Things (IoT) era. With Bluetooth being implemented in most other Victron Energy products, wireless communication between products will simplify system installation and enhance performance. The BMV-712 Smart battery monitor provides comprehensive real-time information about your battery bank's status. Monitor essential data such as voltage, current, capacity, and state of charge, allowing you to make informed decisions and optimise battery usage.

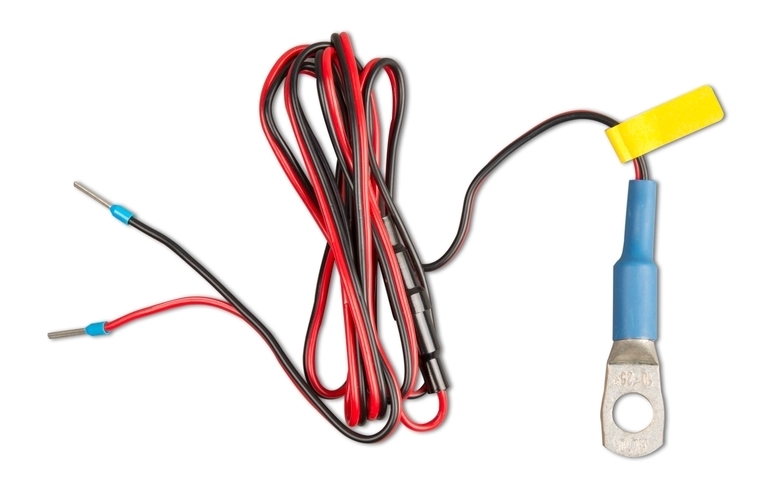

Victron Temperature Sensor for BMV-702/712

The Victron Temperature Sensor for BMV-702/712 provides precise temperature monitoring for enhanced battery management.

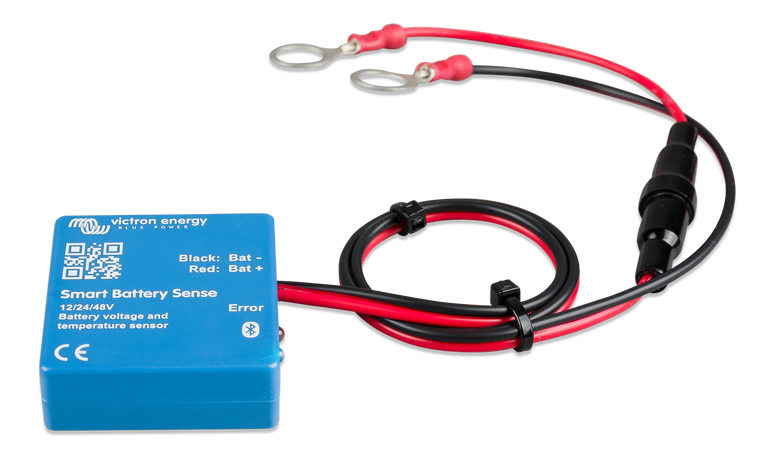

Victron Smart Battery Sense Long Range (up to 10m)

Smart Battery Sense is a wireless battery voltage and temperature sensor for Victron MPPT Solar Chargers.

With voltage and temperature sense in place, batteries will be better charged; improving charging-efficiency and prolonging battery life.

Go to: Product Details

Go to: Videos

Specifications

SKU BDL009

Brand Victron

Warranty Period: 5 Years

Product Category Solar Charge Controllers

Charge Current (A) 20

Temperature range -20 +50°C (Battery Monitor)

Efficiency 87% (Battery Charger) | 98% (Solar Charger Controller)

PV Short Circuit Current 20 A (Solar Charger Controller)

Nominal PV Power 12V 1a,b) - 290W | 24V 1a,b) - 580W (Solar Charger Controller)

Output Current Rating 25 A (Battery Charger)

Temperature Compensation 16 mV / °C resp. -32 mV / °C

Charge Algorithm multi-stage adaptive

Charge voltage 'absorption' 14.4V / 28.8V / 57.6V (adj.) (Solar Charger Controller)

Protection category IP43 (electronic components), IP22 (connection area) (Solar Charger Controller)

Voltage ± 0,01V (Battery Monitor)

Standby Current Less than 1mA (Battery Charger)

Operating Range (temp) -40 +50°C (-40 - 120°F) (Battery Monitor)

Battery Capacity 1 - 9999 Ah (Battery Monitor)

Input Voltage 6,5 - 70 VDC (Battery Monitor)

Operating temperature range -20 to +55°C (derate 3% per °C above 40°C) (Battery Charger) | -30 to +60°C (full rated output up to 40°C) (Solar Charger Controller)

Dimensions (LxWxH mm) 70 x 186 x 130mm (Battery Charger) | 60 x 113 x 100mm (Solar Charger Controller)

Weight (kg) 1.3 kg (Battery Charger) | 0.65 kg (Solar Charger Controller)

Protection Output short circuit / Over temperature (Solar Charger Controller)

Humidity Max. 95% non-condensing (Battery Charger & Solar Charger Controller)

Amps 20

Go to: Specifications

Go to: Q & A

Videos

How does a Victron Energy MPPT Solar Charge Controller work?

Go to: Videos

Go to: Reviews

Product Q&A

Ask Us a Question

What size cable will I need to connect my 200W solar panel to the Victron SmartSolar MPPT 100/20 - 12/24/48V Charge Controller?

You can use 6mm² cable.
What voltage is this recommended for?

This regulator is suitable for 12, 24 or 48V systems and will automatically adjust itself to a 12V or a 24V system the first time it is used. This is one time only though and if a different system voltage is required at a later stage you will need to manually adjust this using the Bluetooth app.
