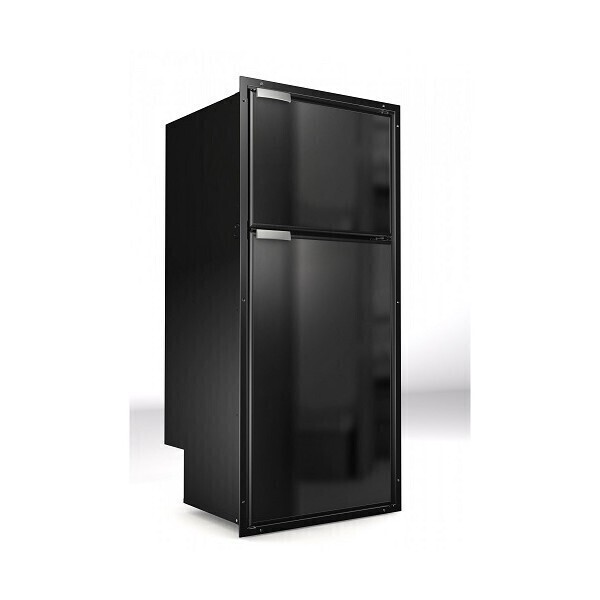

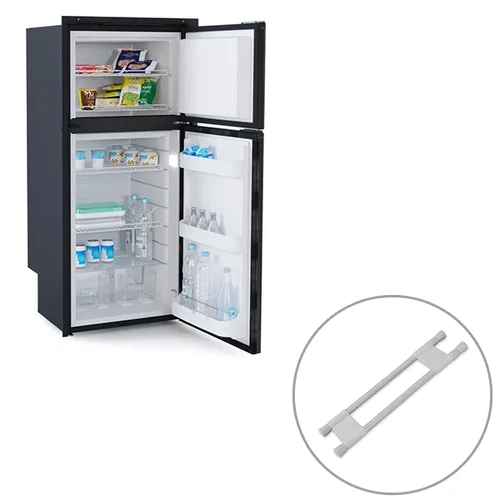

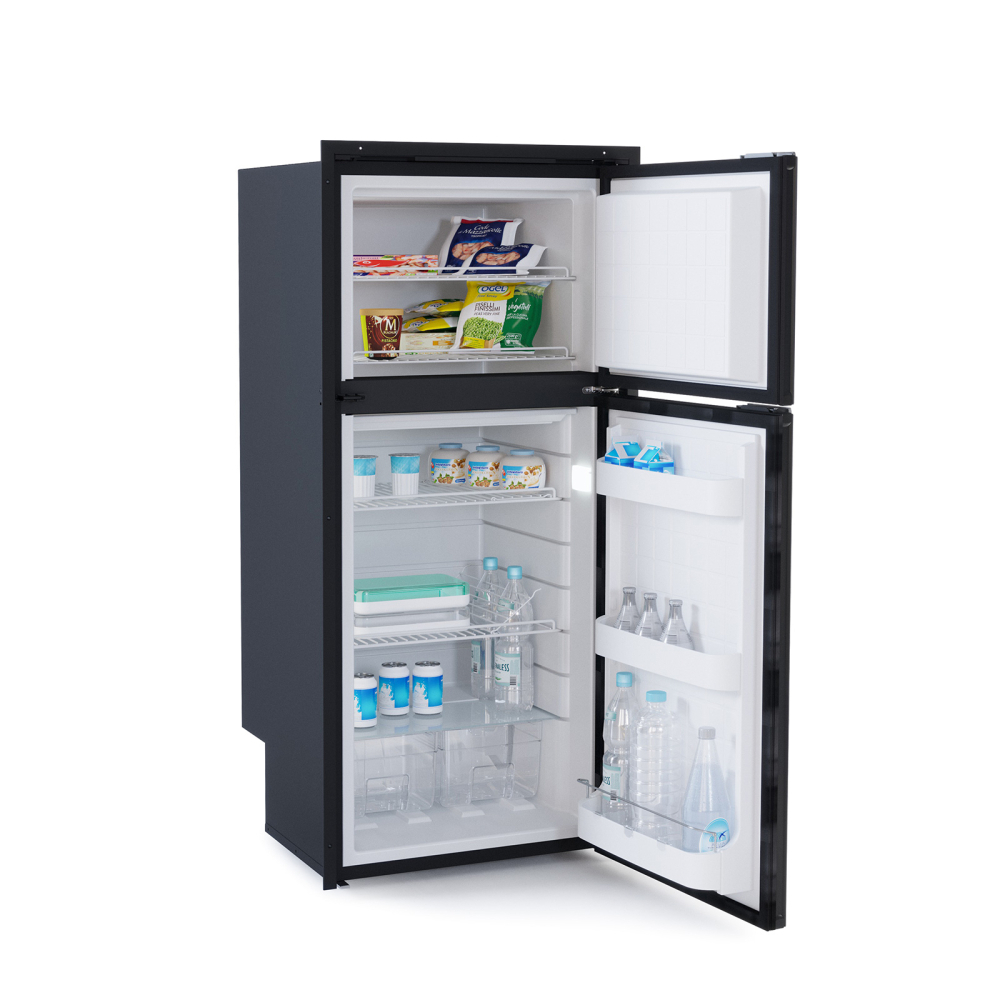

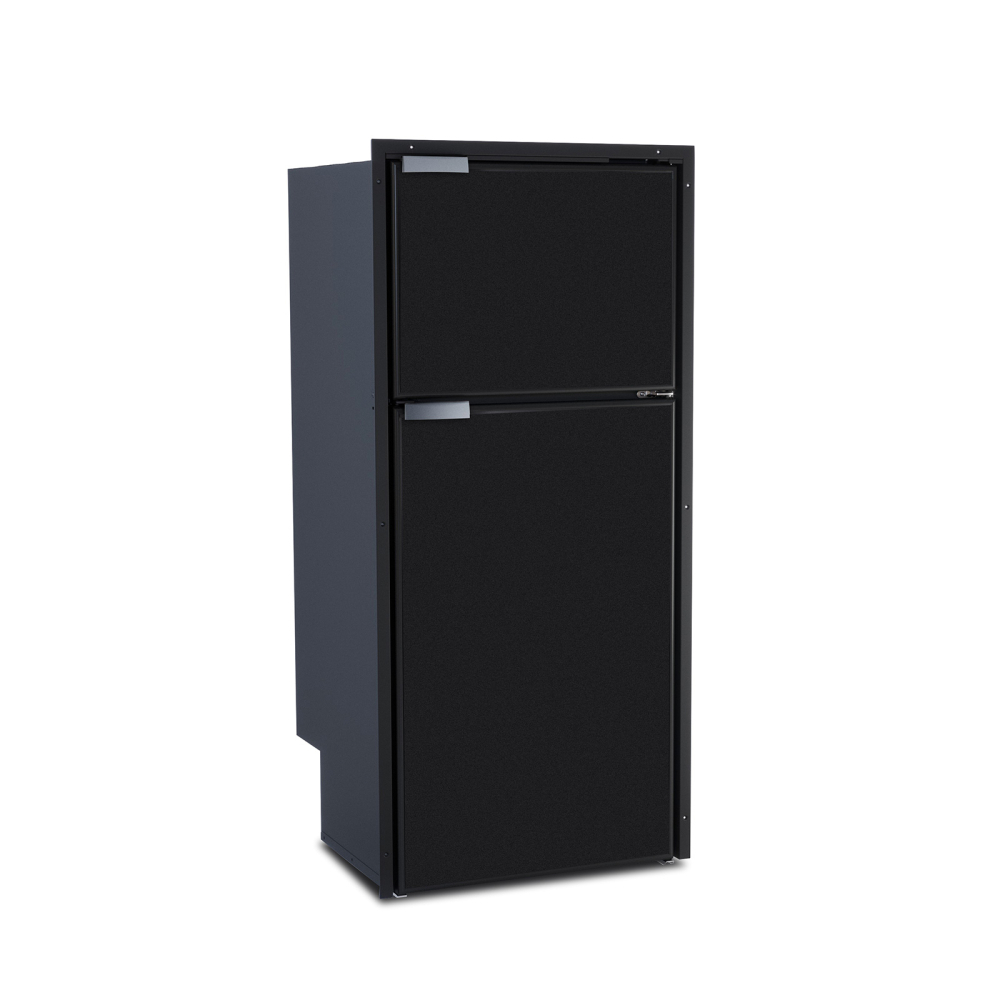

Vitrifrigo DP2600I 12-24 230 Litre 2 Door Fridge & Freezer

Specifications

SKU A-043659

Brand Vitrifrigo

GTIN 9339051008538

Warranty Period: 2 Years

Product Category Upright RV Compressor Fridges

Fridge Voltage 12 / 24 V

Product Type Compressor driven Built In Fridge-Freezer that operates on 12v DC or 24v DC power. Designed for Recreational Vehicles and Marine use.

Total Capacity (Litres) 230

Freezer Compartment (Litres) 60 Litres

Fridge Depth (mm) 602

Fridge Width (mm) 631

Fridge Height (mm) 1354

Cut-out Required Flush (mm) 595 x 1344 x 602mm (W x H x D)

Installation Refer to the Product Manual / Installation Guide for installation instructions from the manufacturer. For optimal performance of RV compressor fridges

Popular Product Applications Caravan fridge, upright compressor fridge, 2 door fridge, large caravan fridge, Vitrifrigo caravan fridge

Avg Power Consumption 42w

Door 2 door (separate freezer), reversible hinge

Weight (kg) 62

Product Q&A

• Outside temp about 20cel..fridge turned to ful drinks cool but not cold freezer just keeping food frozen. We plan to go to cape where the temp will be 30 plus what is wrong new van. Was working well on middle setting originally call me 0412136088asap

  Hi Gary,

  We would highly recommend getting in touch with the caravan manufacturer for warranty assistanc if the van is new. They should be able to assist in rectifying your situation.

  If they cannot help, we'd also suggest contacting Camec Australia. They import these fridges and have repair agents around the country. Their number is 1300 422 632.

• Good afternoon,Re the Vitri 2600 compressor 230lt fridge.With the 240v power adaptor fitted can the fridge run directly off the 240v power supply or does it go through the 12v battery system.Regards, Neil

  Hi Neil,

  If you ran this fridge with a 240V adapter, you would not need to have the power go through the battery system. The adapter will covert 240V to 12V/24V.

• Please advise name and size of compressor for the Vitrifrigo DP2600l 230 Litre? Thank you

  Hi there, this model fridge uses a Danfoss (Secop) BD50F compressor. Many thanks

• Hi, I need to know the dimensions for the lower rear cabinet step. Has to fit over wheel arch.Thank you

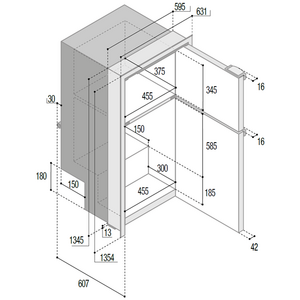

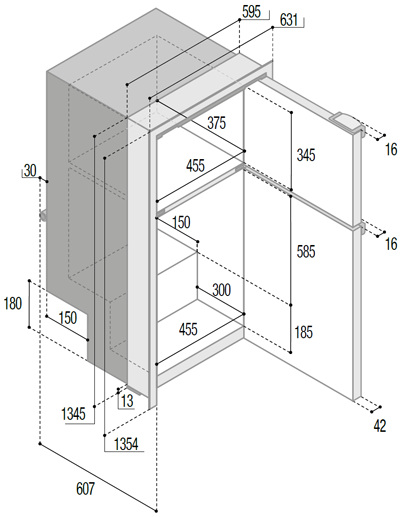

  Hi There, After reviewing the sizing image on the site, the measurements would be as follows:

  • 180mm high
  • 155mm depth
  • 595mm wide
• Hi, is the installation frame removable? Have an existing cabinet with door for it to fit into. Thanks

  Hi There,

  The frame is not removable on this fridge as it is required for secure installation.

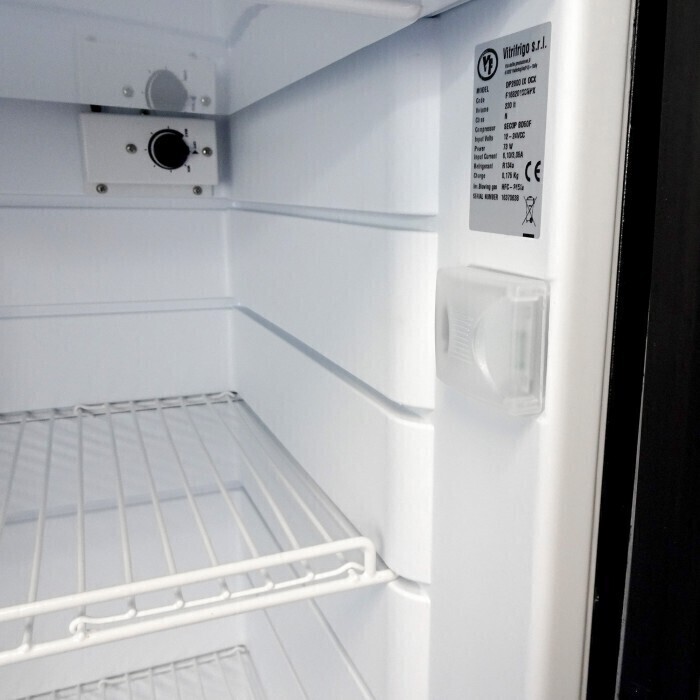

• Are there separate temperature controls for the fridge and freezer?

  There is only one control for both compartments. Temperatures in the fridge and freezer cannot be set independently.

• How can I assist with ventilation at the back of my Vitrifrigo?

  Ventilation is the key to having a compressor fridge performing at it's best. Ensuring you have vents on the back outer wall of the caravan where the fridge is installed helps remove hot air produced from the compressor. Alternatively installing an extra 12v Fridge Fan near the compressor to push the hot air out the vents is also a great addition.

• Can the door on this fridge be reversed?

  Yes the door is reversible.

• Does this fridge require ventilation?

  Yes! It is imperative you have sufficient ventilation at the backof the fridge. You can refer to the installation guide prior to purchase.

• Can this fridge run on 240v?

  No, this fridge is only 12/24v.
