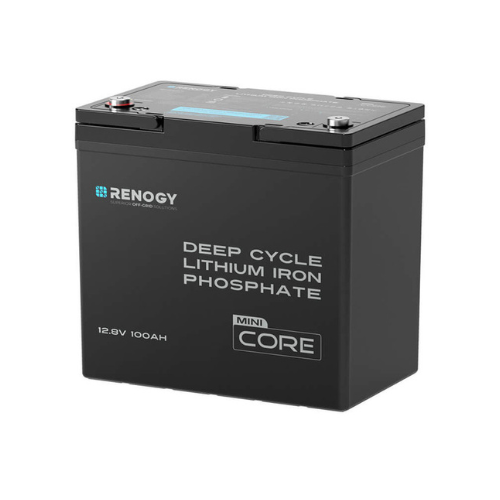

Renogy 12V 100Ah Core Mini Lithium Battery

SKU: RBT12100LFP-M-AU Learn More»

Free Shipping

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

Customer Reviews

Go to: Product Details

Go to: Specifications

Product Description

Renogy 12V 100Ah Core Mini Lithium Battery, 5 Year Warranty.

Features

Renogy's smallest 12.8V 100Ah LFP Battery (Group 22NF)
Low-temperature cut-off for safer charging in freezing weather

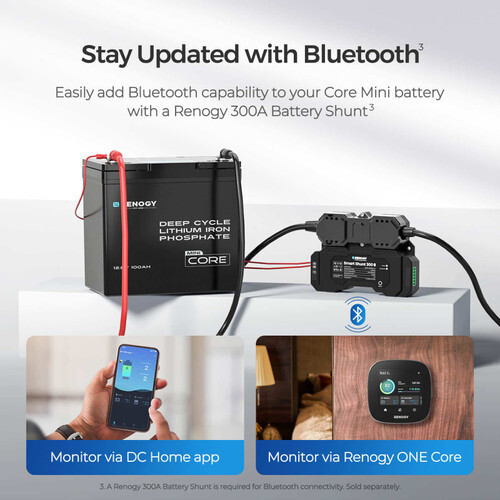

Works with a Renogy 300A Battery Shunt for remote monitoring

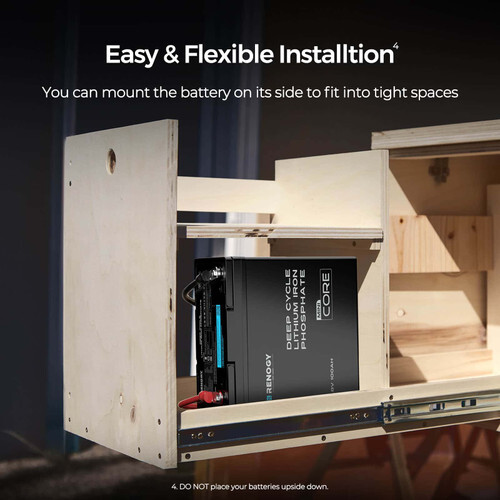

Can be mounted on its sides to fit in cramped spaces
IP65-rated & vibration-resistant for enhanced outdoor performance

Benefits

10X Longer Lasting Power. The latest 12.8V 100Ah Core Mini LFP Battery is built in with UL-listed, EV-grade prismatic cells, boating 5000 cycles at 80% depth of discharge. The lifetime and performance blow away lead-acid batteries of the same capacity.
Peak Power Output. Capable of discharging up to 300A within 5 seconds, this portable power beast can smoothly pump up energy-demanding appliances like microwaves that require a high start current
Enhanced Vibration Resistance. The integrated metallic cell spacers securely hold the cells in place, preventing movement and minimizing the risk of cell damage or short circuits, even during rugged off-road driving or rough water conditions.
Tested & Trusted Power. Backed by rigorous testing & certifications including UL, FCC, and CE, this mini-sized 12.8V 100Ah LiFePO4 Battery delivers unmatched reliability and is ready for a wide range of uses.

Includes:

1x Core Mini - 12.8V 100Ah Lithium Iron Phosphate Battery
2x Long Terminal Bolts (M8 x 1.25 x 15 mm)
User Manual

Go to: Product Details

Go to: Videos

Specifications

SKU RBT12100LFP-M-AU

Brand Renogy

GTIN 840315230361

Warranty Period: 5 Years

Product Category Batteries

Battery Voltage 12V

Amp Hours (Ah) 100

Battery Length (mm) 229

Battery Width (mm) 138

Battery Height (mm) 213

Nominal Voltage 12.8V

Maximum Charge Current 100A

Maximum Discharge Current 100A

Battery Voltage Range 10V to 14.8V

Maximum Solar Input Power 900 W (12V Battery);1800W (24V Battery);2000 W (36V Battery);3200W (48V Battery)

Protection Rating IP65

Certifications Certifications MSDS, UN38.3, FCC, CE, PSE, RCM, IC, RoHS, and UKCA

Humidity 0% to 95%

Connection Series & Parallel (4S4P)

Rated Capacity 100 Ah (0.5C, 25°C)

Battery Capacity 1280Wh

Operating temperature range 0°C to 55°C (charge)

Operating temperature range -20°C to 60°C (discharge)

Weight (kg) 9.9

Go to: Specifications

Go to: Q & A

Videos

Introducing Renogy 12V 100Ah Pro Lithium Battery: Power Your DIY Portable Cooking Station

Go to: Videos

Go to: Reviews

Product Q&A

Ask Us a Question

Can this battery be used in series to build a 24-volt system?

Yes. You can connect Renogy 12.8V 100Ah Core Mini Batteries in series for a 24V off-grid power system.
Does this Core Mini LFP battery have low-temperature cut-off?

Yes. It is built in with low-temperature charging protection to prevent the battery from charging below 32°F / 0°C.
How many Renogy 12.8V 100Ah Core Mini Series Batteries can I connect at most?

You can connect up to 16 batteries in series and parallel to expand power to 20.48kWh. Batteries of the same model and similar capacity are required.
Can I pair a Bluetooth Module for this battery to monitor the battery status on the phone?

No. This battery does not have a Bluetooth port for a Bluetooth Module. However, you can connect your battery with a Renogy 300A Battery Shunt (sold separately), which can send the data to the DC Home app via Bluetooth so you can keep track of battery status in real time.
How to recharge my LiFePO4 batteries?

Whether you prefer charging batteries via solar, a DC-DC battery charger, or an AC-DC charger, we highly recommend a solar charge controller/charger compatible with lithium iron phosphate batteries.
