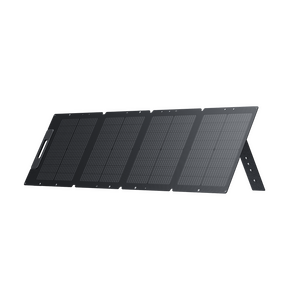

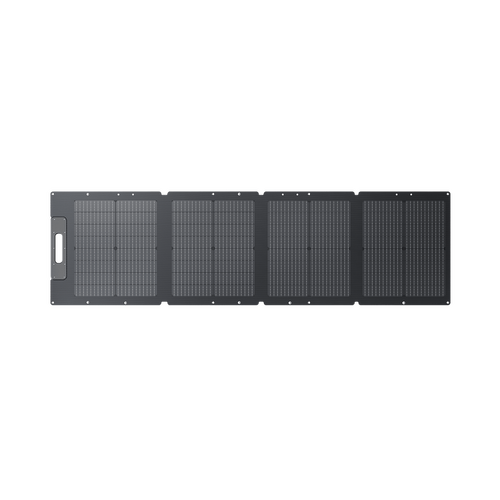

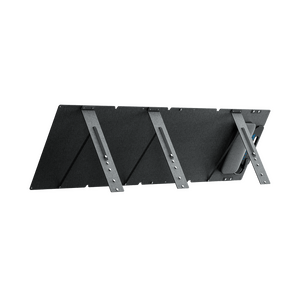

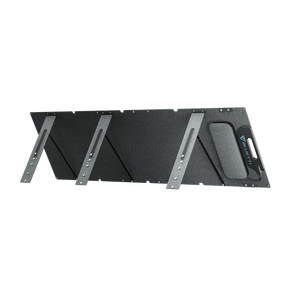

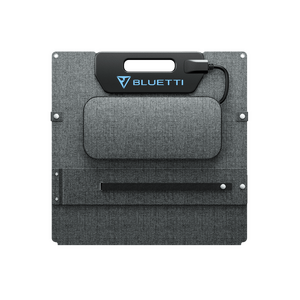

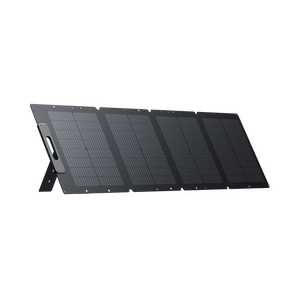

Bluetti PV120 120W Portable Solar Panel

Specifications

SKU PV120-UJ-BK-BL-010

Brand Bluetti

GTIN 6970991290404

Warranty Period: 1 Year

Product Category Portable Solar Panels

Solar Panel Type Folding Solar Panels

Solar Panel Cell Type Monocrystalline

Watts (W) 120

Operating temperature range - 10℃－+65℃

Max Power Voltage Vm(V) 20.9V

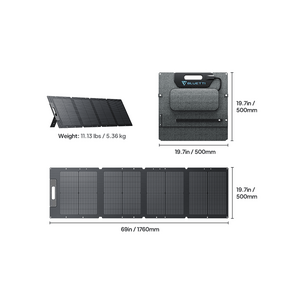

Dimension (Open) 1749 x 552mm

Open Circuit Voltage Voc(V) 24.8V

Included 1 x BLUETTI PV120 Foldable Solar Panel | 1 x User Manual | 1 x QC Card | 1 x 12-month Warranty Card

Short Circuit Current Isc(A) 6.1

Dimensions (close) 461 x 552mm

Cell Efficiency Up to 23.4%

Max Power Current Im(A) 5.74A

Weight (kg) 6.8

Product Q&A

• What can this PV120 charge?

  The PV120 can work with most power stations on the market,

  • 1pcs BLUETTI 120W solar panel can quickly charge the BLUETTI EB55 within 5.7-6.2 hrs.
  • 1pcs BLUETTI 120W solar panel can quickly charge the BLUETTI EB70 within 7.5-8 hrs.
  • 2pcs BLUETTI 120W solar panels can quickly charge the BLUETTI EB150 within 7.8-8.3 hrs by connecting them in series.
  • 3pcs BLUETTI 120W solar panels can quickly charge the BLUETTI AC200P within 7-7.5 hrs by connecting them in series.
  • 3pcs BLUETTI 120W solar panels can quickly charge the BLUETTI AC200Max within 7.2-7.7 hrs by connecting them in series.
  • 6pcs BLUETTI 120W solar panels can quickly charge the BLUETTI AC300+*2B300 within 10.5-11 hrs by connecting them in parallel.

  Besides the BLUETTI power station (AC200P, EB150, EB55, EB 70, AC200MAX, AC300),

  it can also be used with other brands If yQ4:What is the difference between the PV120 and SP120? you have your own adapter (need to buy adapter yourself).

  Friendly Note: which means that if the total power of your devices exceeds 700W.

• Is It Waterproof?

  Yes, IP65 is rated for junction box, but do not expose the solar panels to rain or snow.

• Can I install it on the roof?

  No.

• What is the difference between the PV120 and SP120?

  Under the same condition, BLUETTI PV series solar panels produce more power from limited sunlight.* * Conclusion from BLUETTI Lab, for reference ONLY.

• BLUETTI PV120 compatibility.

  Most solar power stations on the market, and one PV120 solar panel is ideal for BLUETTI EB55/EB70/EB3A portable power stations.

• How do I choose solar panels for my solar generator?

  Review the PV input requirements of the solar generator. Review the output specifications of solar panels. Calculate the total voltage, current, and wattage of solar panels. Consider the solar input connectors.

• Can I use different size solar panels?

  No. Your solar panels should be the same type and rating from one brand. For example, two PV120 to charge BLUETTI AC200P is acceptable, and one PV120 + one SP120 is unacceptable.

• Does the panel have any USB ports you can directly plug into?

  No. BLUETTI PV120 only has MC4 connectors.

• How do I maximize the efficiency of solar panels?

  These steps will help you get the most out of your solar panels:

  1. Set up your panels correctly: The orientation as well as the angle it tilts at should be right.

  2. Avoid shadow areas: Any amount of shadow will affect solar panel production.

  3. Keep your panels clean: Dirt or debris reduces the panel's efficiency.

  4. Don't get panels too hot: Good air circulation or a cool atmosphere around panels will help.

• Can AC200 MAX be recharged with solar panels and wall outlet simultaneously or dual AC adapters?

  YES
