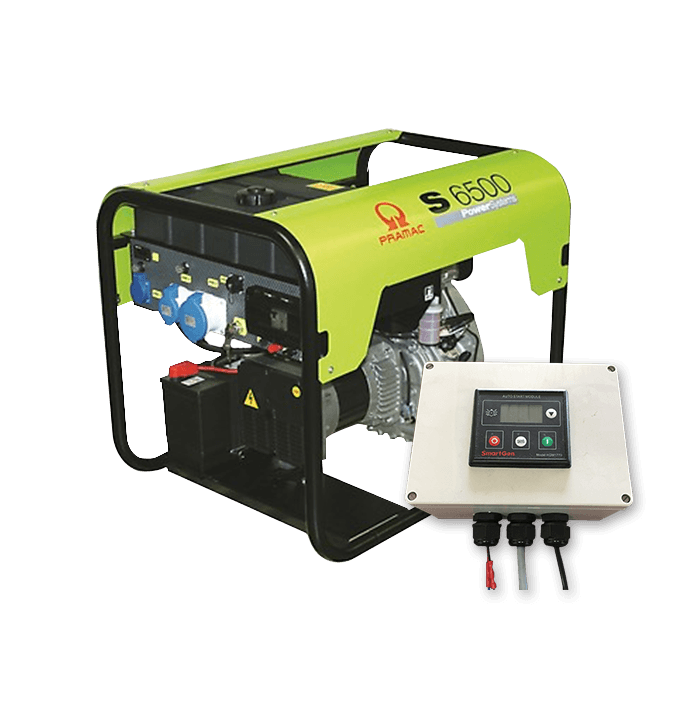

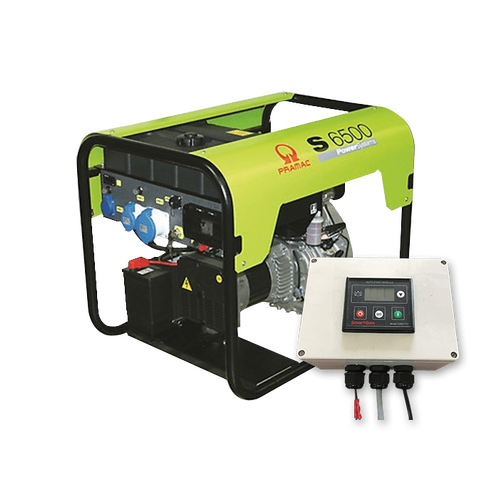

Pramac 5.9kVA Auto Start Diesel Generator + 2 Wire Controller, S6500 + PY000A000ASD
SKU: PD482SY4001-PY000A000ASD Learn More»
Product Description

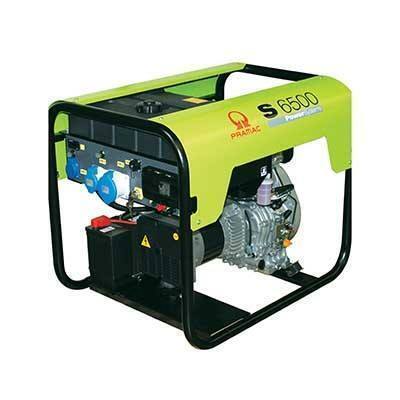

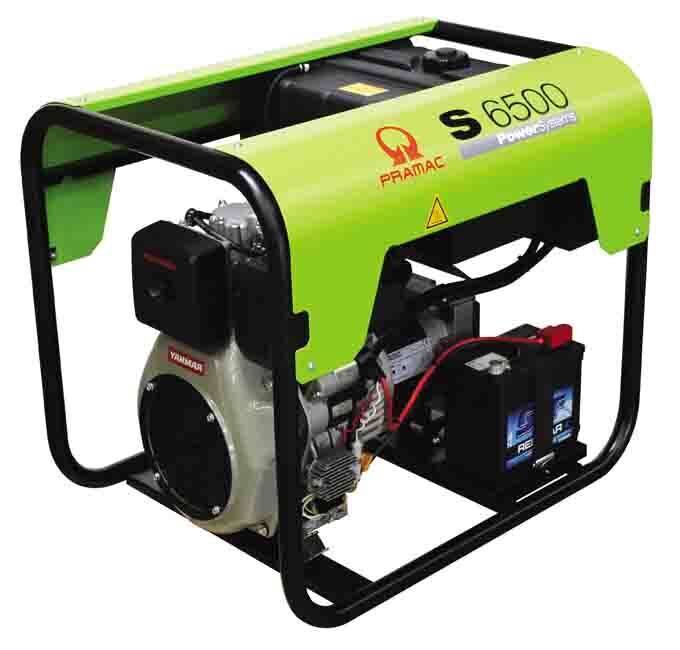

Pramac 5.9kVA Auto Start Diesel Generator + 2 Wire Controller, S6500 + PY000A000ASD, 3 Year Warranty. The Pramac S6500 is strongly built auto start generator designed for domestic or small business backup. Powered by a highly reliable Yanmar diesel engine, with a 24 litre fuel tank which provides 16 hours run time at 75% load. The unit produces a maximum power of 6.5kVA and a continuous output of 4300 watts. This generator is used for backup to off-grid solar systems.
PRIMARY APPLICATION FOR THIS GENERATOR:

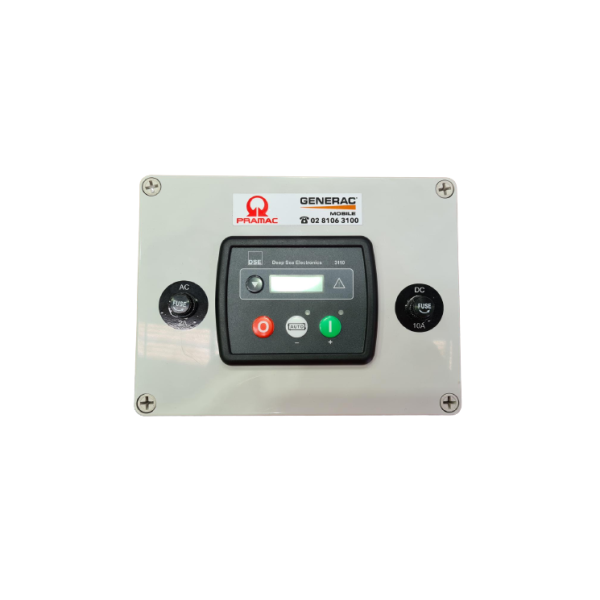

1) Backup to Off-Grid Solar: For backup power to off-grid solar systems, this generator requires a Pramac 2 Wire Auto Start Controller - supplied with generator package. This controller connects between your Pramac generator and your solar system for automatic charging of your solar batteries when battery charge is low. A qualified solar installer / electrician is required to undertake the install and connection. Click on below image for a video demonstration:
Overall, the Pramac S6500 is a popular no-fuss, affordable, tough generator for backup power requirements and is supported by a national service agent network.
Specifications
SKU PD482SY4001-PY000A000ASD
Brand Pramac
Warranty Period: 3 Years
Product Category Portable Generators
kVA 5.9
Max Output (kW) 5.3
Continuous Output (kW) 4.4
Max Output (Watts) 5300
Continuous Output (Watts) 4400
Fuel Diesel
Fuel Tank Capacity 24L
Starting Method Electric Start
Engine Speed 3000rpm
Displacement 406cc
Frequency 50Hz (Generator)
Outlets 2 x 15A 1ph Australian Retail & 1 x 32A 1ph CEE Form outlets
Voltage 230V
Weight (kg) 114
Product Dimensions (LxWxH) 840 x 641 x 696mm
Noise @ 7m 80db
Cont. Working Time 16h at 75% load

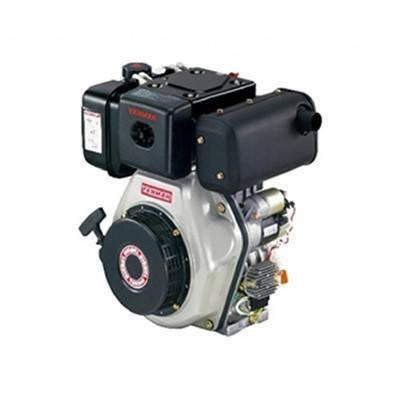

Engine Yanmar L100
Videos
Pramac S6500 / S6000 Video Tutorial
Product Q&A
-
Is this generator compatible with electronic devices?
Hi There
One of the main primary applications for this generator is Backup to Off-Grid Solar.
You can also use if for backup to mains power, and would be safe to use on electric devices.
Kind Regards
Customer Reviews
excellent Review by brian hayessuited customer replacement off grid system.(Posted on 7 March 2021)
