Toyota Hilux Revo DC (2016-Current) Load Bar Kit / Track AND Feet - by Front Runner

Product Description

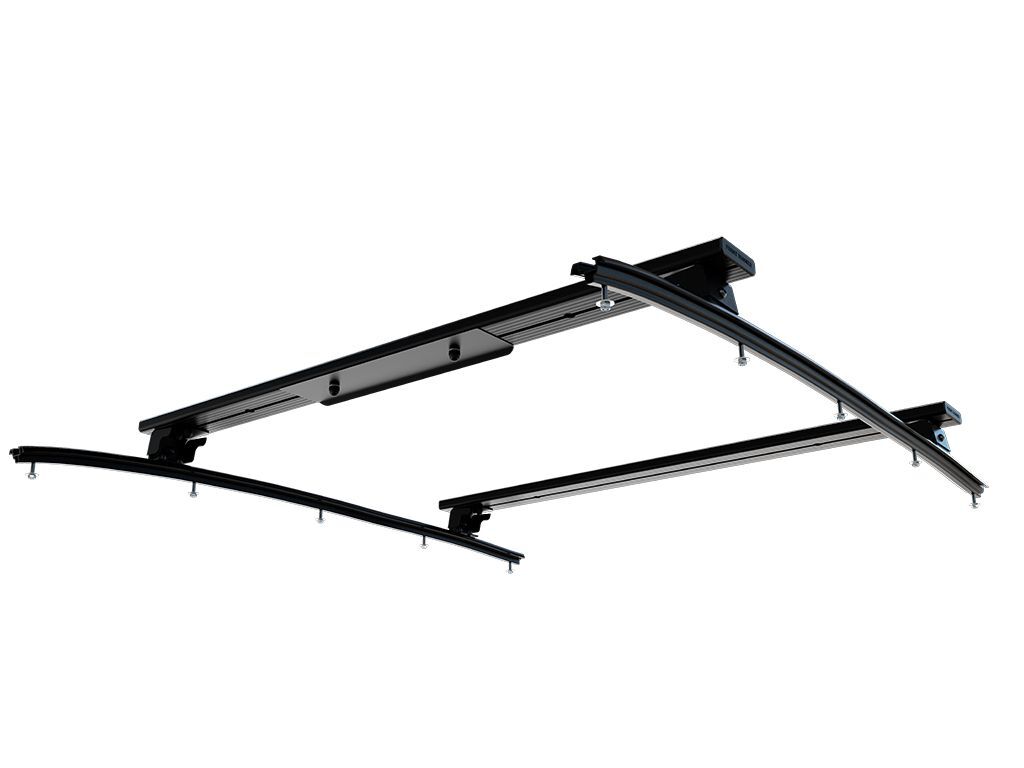

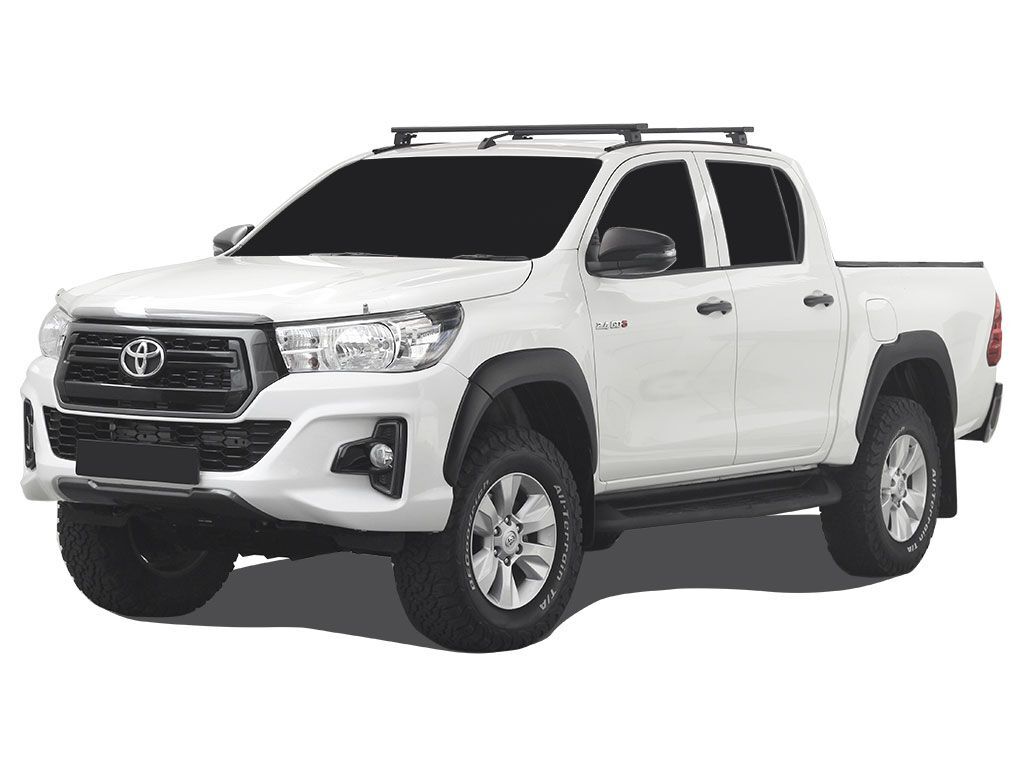

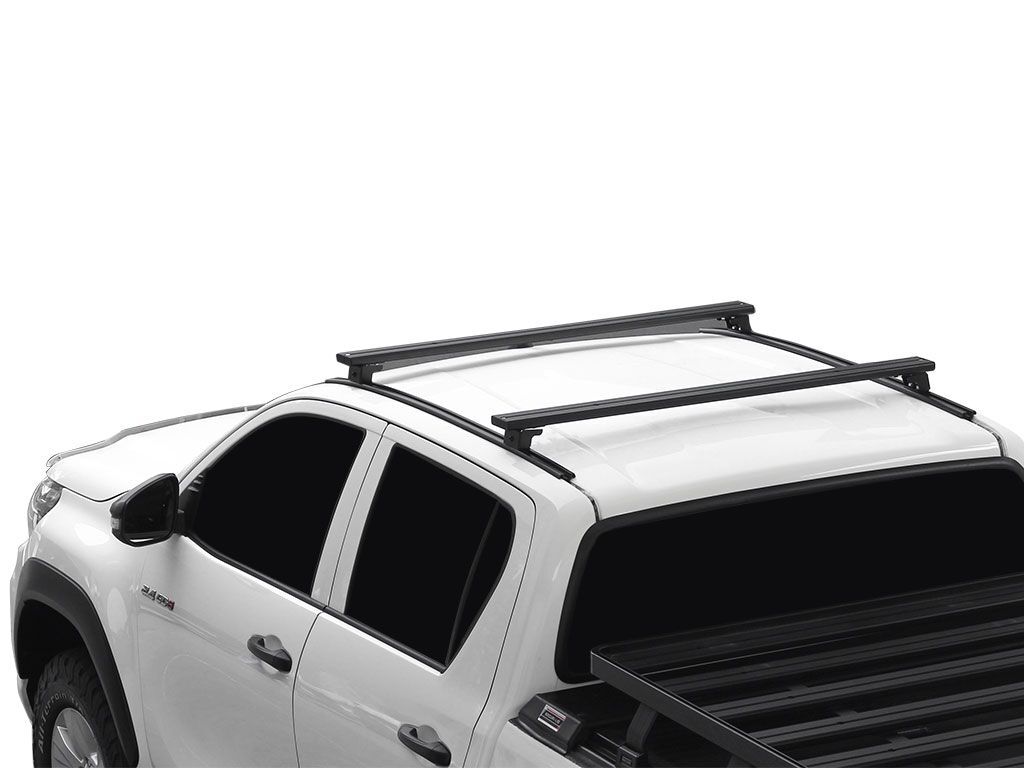

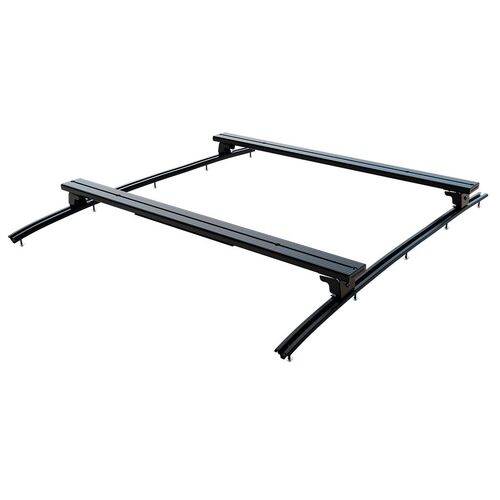

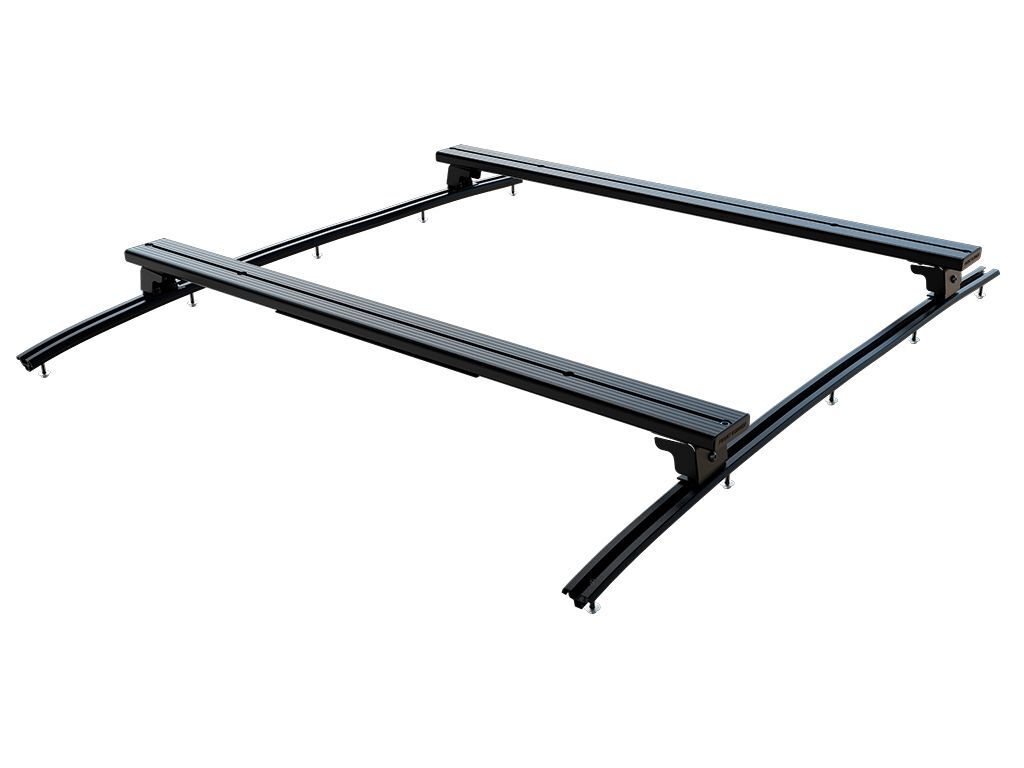

Toyota Hilux Revo DC (2016-Current) Load Bar Kit / Track AND Feet - by Front Runner, Limited Lifetime Warranty. Transport gear over the roof of your 2016-Current Toyota Hilux Revo DC with this low-profile set of Load Bars. This kit allows the use of many Front Runner rack accessories, without the need to install a full roof rack.

• Includes wind deflector, four (4) mounting feet, and two (2) 1165mm Load Bars that fit into the supplied tracks

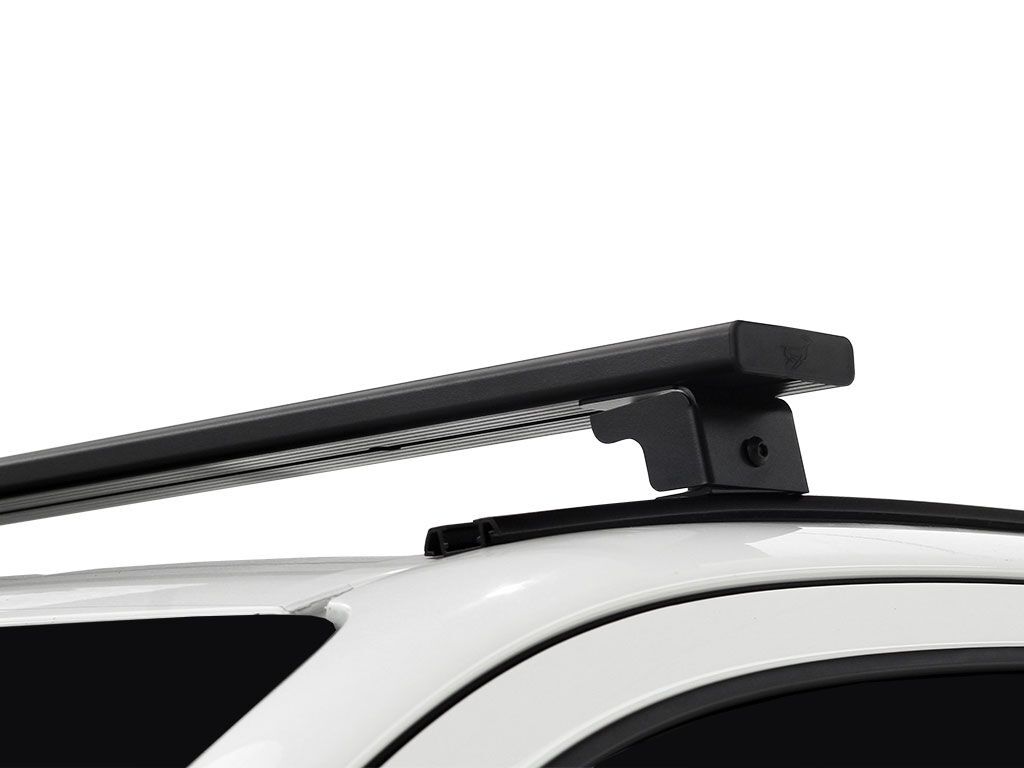

• Load Bars are mounted via mounting feet that bolt directly onto the supplied tracks
• Uses the same strong, corrosion-free aluminum slats found in Front Runner racks
• Sliding nut t-slots allow for quick fitting and removal of accessories and equipment on both the top and bottom of the slats
• Made from steel and durable, weather-resistant black powder-coated aluminum
• Includes all hardware, components, and installation guide needed to fit Load Bars on a vehicle

Consisting of:

• 2x FASS012 - Foot Set / 40mm - 50mm
• 1x LBSK013 - Load Bar Pair 1165mm(W)
• 1x TRTH006 - Toyota Revo DC (2016-Curr) Tracks/1300mm(L)
• 1x WDLB001 - Load Bar Wind Deflector / 10mm

The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Load Bar Kit, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot, Grab-On Foot listed above.

If your Load Bar kit uses Legs, add the height of the Load Bar (22mm/ 7/8") to the height of the Legs listed above to determine the height of the rack from your vehicle's rain gutters.

If your Load Bar kit uses Foot Rails, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot Rails listed above to determine the height of the rack from the crown (highest point) of the vehicles roof.

Installation Guide for Slimline II Tray Universal Assembly

Installation Guide for Tracks/1300mm

Installation Guide for Load Bar Wind Deflector
